M-216 Option P7

Remote Program Monitoring • Point-to-Point RF Audio Links • Remote Wireless Audio



• Greater Operating Range
• Rugged, Short Whip Antenna
• Extended Frequency Response

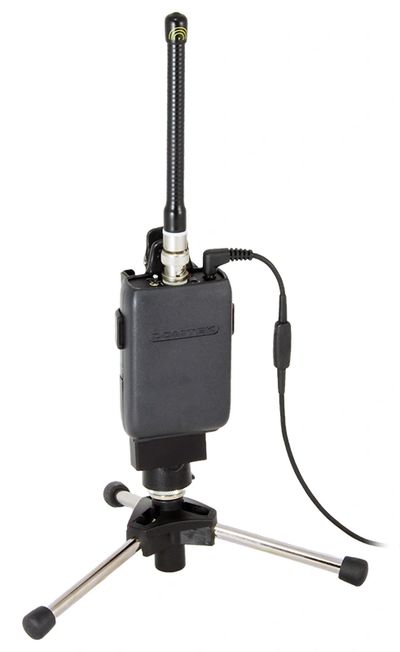

The M-216 Option P7 is the perfect on-the-go field transmitter offering directors, crew, and client reliable and superior sounding wireless program monitoring. For use with the PR-216 or PR-216 Option 7 wireless receivers, this portable, battery powered transmitter is built to withstand the most demanding needs of location sound monitoring. Equipped with a flexible short whip antenna, the M-216 Option P7 offers superior RF transmission and a greater operating range. It has an adjustable dain control an a single LED VU meter that offers a quick visual reference to indicate audio input level. The optional MBS-216 Mounting-Bracket Stand is an ideal way to conveniently position the transmitter and maintain a vertical antenna position. Built with performance in mind, the M-216 Option P7 provides the quality and dependability required by top sound mixers!

Audio Input:
• Aux/Line input impedance – 10k ohm at 0 dB nominal

Connector:
• Auxiliary – Mini 3.5 mm Stereo
- Audio – Tip and Sleeve
- Battery Charging – tip and Sleeve
- External 9V power – Ring and Sleeve

Controls and Indicators:
• Power On/Off switch
• Synthesized channel selection switches
• Audio input gain control
• Power/Battery test and voice level indicator

Antenna System: BNC short loaded whip antenna

Frequency Response: 80 Hz to 10 kHz

Modulation:
• 5 kHz deviation Ch. 1-40 (non-companded)
• 10 kHz deviation Ch. 41-60 companded

RF Power Output: 10 mW to the antenna system

Out-of-Band Emissions: Better than 45 dB below carrier

Current Drain: 17 mA constant current

Weight: 4 ounces (110 grams)

Battery:
• 9 V alkaline for up to 35 hours of operation
• 9 V Nickel-Metal Hydride rechargeable for up to 15 hours of operation

Dimensions: 1 1/6” x 2 1/2” x 3 1/4” (27 mm x 57 mm x 83 mm)

M-216 Option P7 Includes:
• BC-216 belt clip
• CB-36 XLRF aux input cable with RF isolation
• SLW-216 loaded flexible helical antenna with BNC connector
• C-216 carrying case

DOWNLOADS

All documents are in PDF format.

>> M-216 Option P7 Tech Sheet
>> M-216 User Manual


COMPATIBILITY

The M-216 Option P7 transmitter is compatible with the following receivers:

>> PR-216
>> PR-216 Option 7
